PFX-5311
by Paraflex

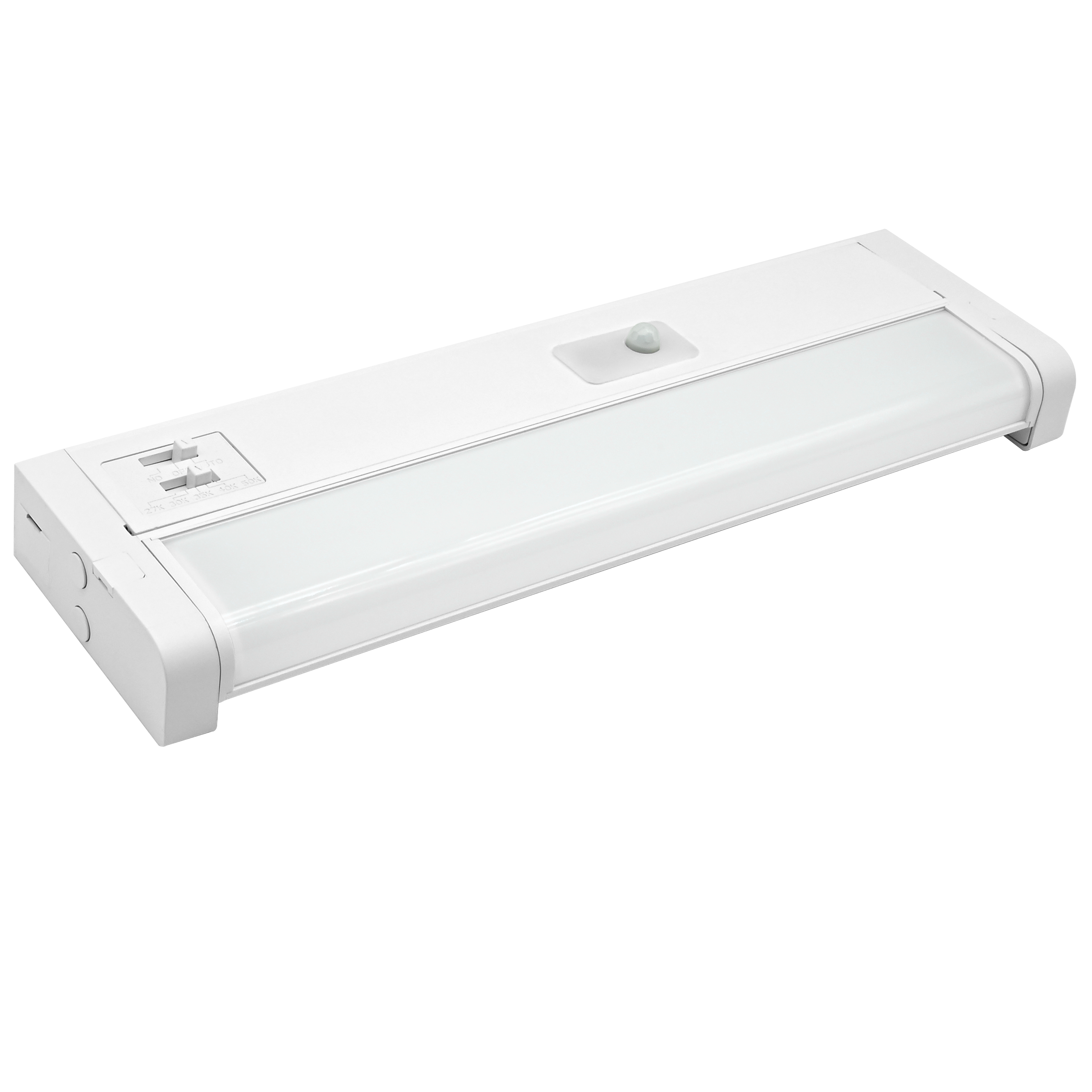

The PFX-5311 by PARAFLEX is a versatile, selectable CCT undercabinet light designed for high-performance task lighting. Encased in a white aluminum housing, it features a rotatable light bar with a $65^{\circ}$ swivel for precise directional control. Users can easily select between five color temperatures, ranging from 2700K soft white to 5000K cool white. This series offers multiple lengths from 9 to 36 inches, delivering a nominal lumen range of 300 to 2,300 lm. The fixture is cETLus listed for damp locations and complies with Title 24 and JA8 standards. With a high CRI of >90 and a long life of up to 167,000 hours (L70), it ensures exceptional color accuracy and durability. Additionally, it supports Triac dimming and allows multiple units to be linked via integrated connectors.
Specsheets
CCT
2700K , 3000K , 3500K , 4000K , 5000K
CRI
90
Color / Finish
White
Controls Options
PIR Sensor
Dimensions
L: 8.98 In. W: 3.35 In. H: 1.51 In., L: 11.97 In. W: 3.35 In. H: 1.51 In., L: 17.99 In. W: 3.35 In. H: 1.51 In., L: 23.98 In. W: 3.35 In. H: 1.51 In., L: 36.02 In. W: 3.35 In. H: 1.51 In.
Dimming Protocol
Triac (Leading Edge)
Efficacy
76.37, 105.29
Lamp Life
51000
Lamp Source
LED
Listings
ETLus
Lumens
300, 800, 1200, 1600, 2300
Materials
Aluminum , Polycarbonate
Mounting
Surface
Ratings & Compliance
Damp , FCC , Title 24
Shape
Rectangular
Voltage
120 V
Warranty
5 yr
Watts
3.95, 4, 7.96, 11.95
Weight
1.06, 1.19, 1.33, 1.50, 1.61
