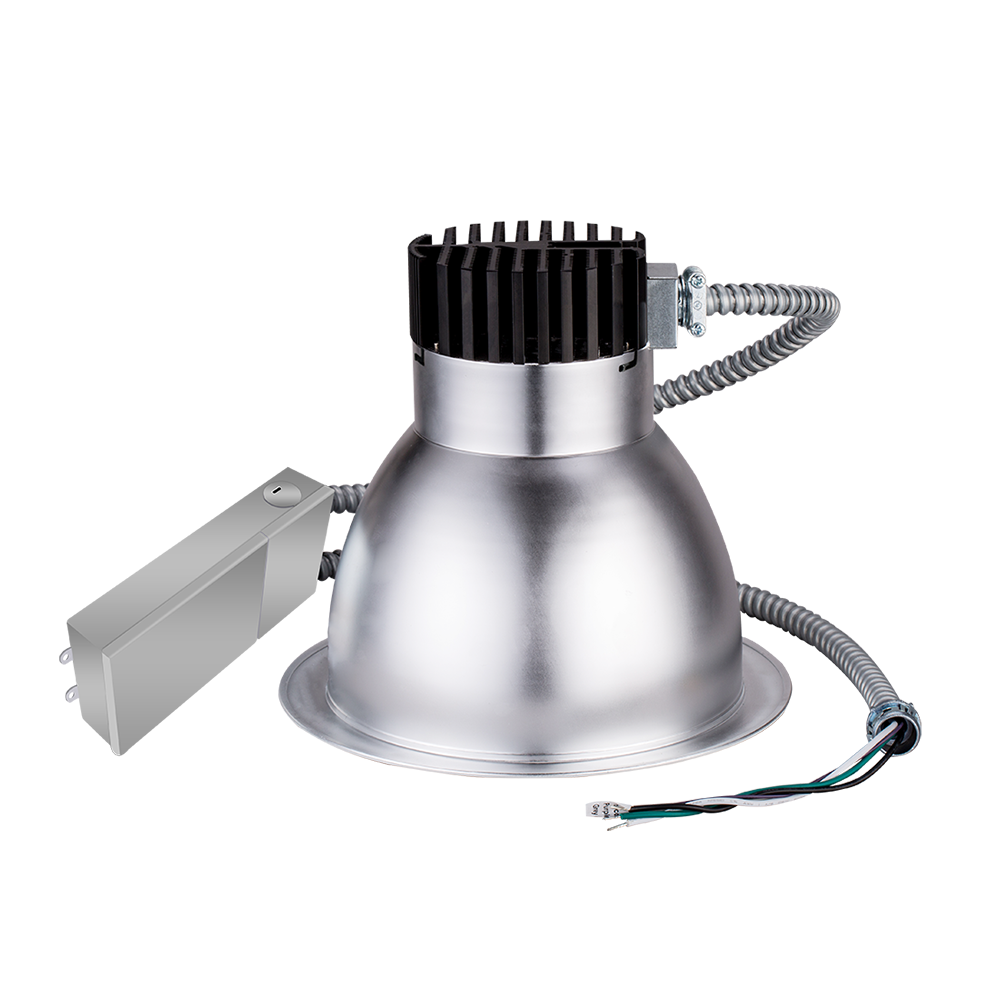

Helios 6, 8, 10"

by Allure Architectural

Performance Downlight represents the new generation of the ALLURE line, featuring field-selectable CCT and lumen package functions.

Specification Sheet Product Page

Specsheets

ALLURE_SpecSheet_HL-6-8-10.pdf

Photometry

HL 6 8 10 IES Files.zip

Aperture

6, 8, 10

CCT

Field Selectable CCT , 3000K , 3500K , 4000K

CRI

Color / Finish

Smooth White

Dimensions

H: 3.94 In., W: 3.29 In. H: 1.57 In.

Dimming Protocol

0-10 V

Lamp Life

50000

Lumens

1150, 1500, 2025, 3500, 4200, 6800

Ratings & Compliance

Damp

Shape

Round

Voltage

120-277 V

Watts

14, 18, 20, 27, 40, 50, 65, 80
