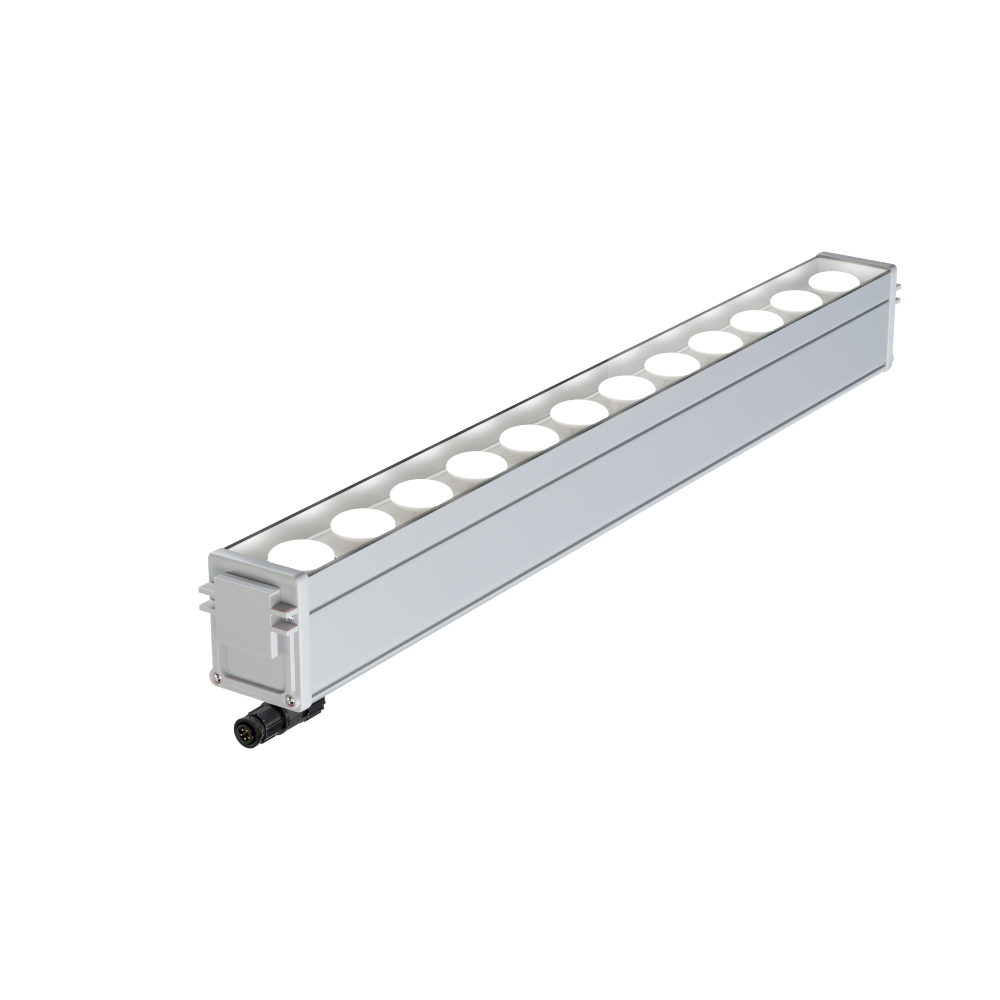

HB40HP
by The Smart Lighting Company
The HB40HP Series is a high‑output exterior linear LED fixture designed for architectural wall washing, surface grazing, and façade lighting
Specsheets
Photometry
Brochures
Options & Accessories
Beam Angle
13 , 15 , 18x18 , 20 , 30 , 45 , 60 , 75 , 90 , 120
CCT
Amber , 2200K , 2500K , 2700K , 3000K , 3500K , 4100K , 5000K
CRI
85, 95
Color / Finish
Anodized Aluminum , Black Powder Coat , Bronze Powder Coat , Silver Powder Coat , White Powder Coat
Dimensions
L: 28 In. W: 1.69 In. H: 2.15 In., L: 46 In. W: 1.69 In. H: 2.15 In., L: 10 In. W: 1.69 In. H: 2.15 In., L: 19 In. W: 1.69 In. H: 2.15 In., L: 37 In. W: 1.69 In. H: 2.15 In.
Dimming Protocol
0-10 V
Lamp Life
90000
Lamp Source
LED
Listings
CSA , UL , cUL
Lumens/Linear Ft.
744, 975
Materials
Aluminum , Polycarbonate
Mounting
Arm , Bracket , Cove , Wall
Ratings & Compliance
Damp , Dry , Exterior , IP66 , Interior , Wet
Static LED Color
Blue , Green , Red , White
Voltage
UNV
Warranty
5 yr
Watts / Linear Ft.
8.8, 12
View This Product In Action
